Guide roller

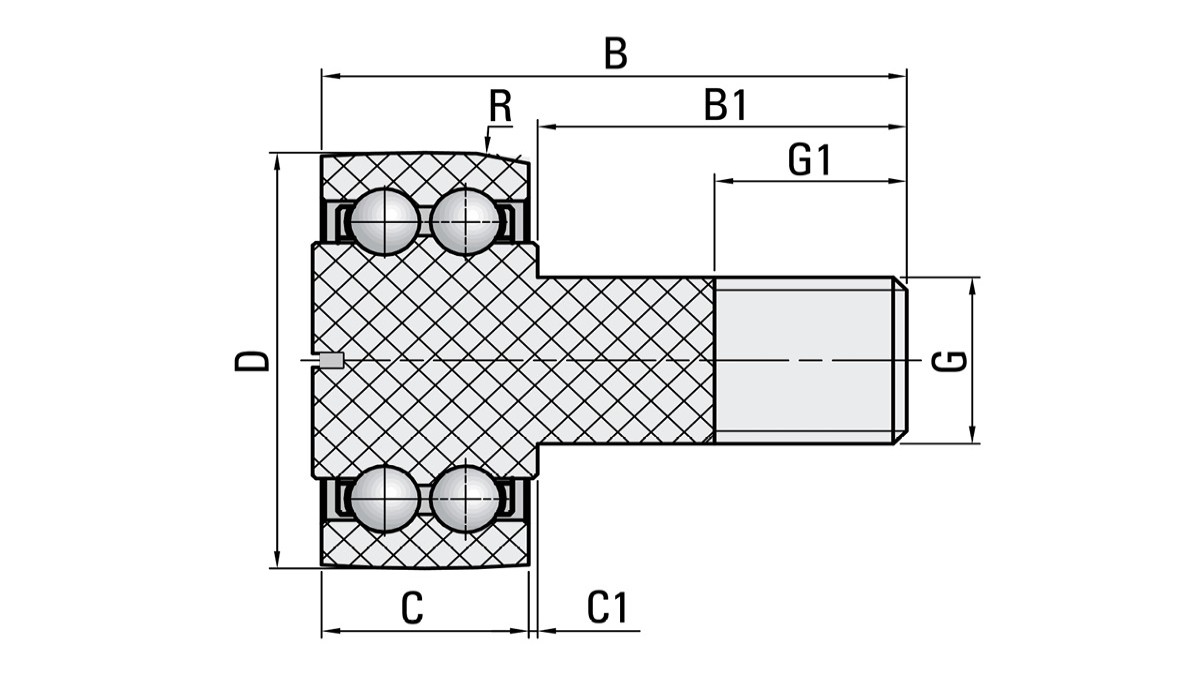

Guide rollers from SMG are 2-row ball bearings with a particularly thick-walled outer ring. The circumferential surface of the outer ring is crowned. Instead of an inner ring, the Cam Follower has a solid roller pin. The pin has a fastening thread and a hexagon socket on both sides.

Guide rollers can support high radial forces as well as thrust forces. The thrust forces occurring in the application result from misalignments, skewing or short-term starting shocks.

The advantage of Guid rollers are the lower Hertzian stress and the lower edge load during tilting, which reduces the wear of the mating track and thus increases the service life.

The standard material combinations for guid rollers from SMG are rings made of POM, balls made of stainless steel 1.4401 and cages made of PA.

Guid rollers of SMG can also be customized.
Variants in imperial dimensions are possible.
